Rapidden Technology Limited is a professional quick-turn PCB prototyping, PCB Assembly and low to medium volume production manufacturer located in Guangdong–Hong Kong–Macao Greater Bay Area.
Whether it is a single board for a prototype or volume production runs, Rapidden Technology Limited will meet your PCB manufacturing needs in a variety of materials and technologies, with an unwavering commitment to UL certification standards.

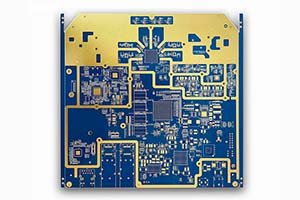

We focus on multi-layer printed circuit boards, impedance Controlled circuit boards and HDI PCBs in varying complexities to make sure our clients always receive the best possible product.
| Item | PCB Capabilities |
|---|---|
Number of Layers |
1, 2, 4 Or 6, up to 40 Layers |
Order Quantity |
1 to 500,000 |
Board Shape |
Rectangular, Round, Slots, Cutouts, Complax, Irregular |
Board Type |
Rigid, Flex, Rigid-Flex |
Board Material |
FR-4 Flass Epoxy, FR4 High Tg, RoHS Compliant, Aluminium, Rogers |
Board Cutting |
Shear, V-Score, Tab-Routed |
Board Thickness |
0.2~4.0 mm, Flex 0.01~0.25 |
Cooper Weight |
0.5, 1, 1.5, 2, 2.5, 3 oz |
Solder Mask |
Double-sided Green Lpi, Also Support Red, White, Yellow, Blue, Black |
Silk Screen |
Double-sided Green Lpi, Also Support Red, White, Yellow, Blue, Black |
Silk Screen Min Line Width |
0.006″ or 0.15 mm |
Max Board Dimensions |
20 inch*20 inch or 500 mm*500 mm |
Min Trace / Gap |
0.10 mm or 4 mils |
Min Drill Hole Diameter |
0.008″, 0.2 mm, or 8 mils |
Surface Finish |
HASL, Nickel. Imm Gold, Imm Silver, OSP etc. |
Board Thickness Tolerance |
+-10% |
Copper Weight Tolerance |
+- 0.25 oz |
Minimal Slot Width |
0.12″, 3.0 mm, or 120 mils |
V-score Depth |
20-25% of Board Thickness |
Plated Through Holes |
Yes |
Sink Holes |
Yes |
Design File Format |
Gerber RS-274X, 274D, Eagle, and AutoCAD’s DXF, DWG |
A full service electronic manufacturing company headquartered in the Good Ole’ China that specializes in printed circuit board assembly services.
